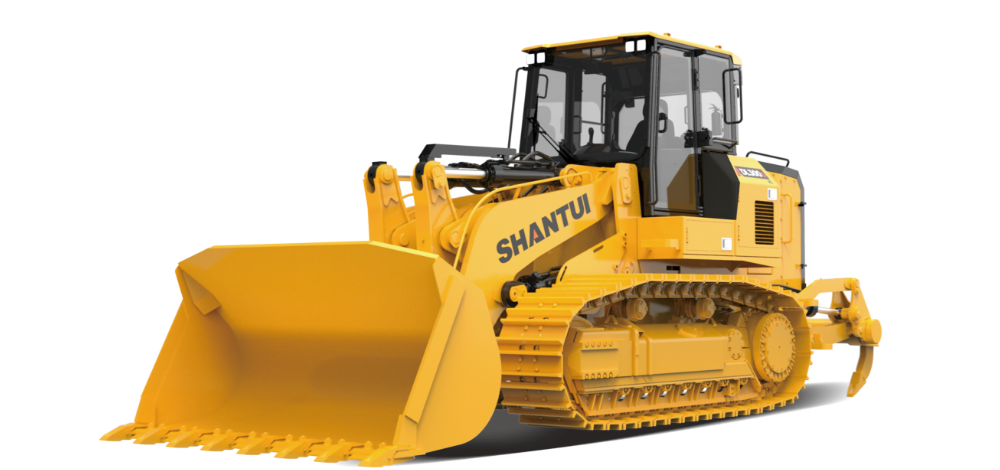

DL300-C3
Chargeur à chenilles
DL300-C3
  • Engine power (kW)/speed (rpm)
    228/1900
  • Operating mass (kg)
    29700
  • Bucket capacity
    3.2
  • Caractéristique
  • Paramètres
  • Cas
  • Enquête
Caractéristique
Adaptability to diverse working conditions

With integrated functions for pushing, loading, shoveling, and transportation, the machine is well-suited for complex working conditions such as urban underground spaces, wetland earthwork, mines, steel plants, ship cabins, forests, tunnels, and more.

Ease of maintenance and operation comfort

Centralized layout of filters facilitates easy maintenance. Spacious and well-sealed cab offers excellent visibility. Intelligent diagnostic system monitors various parameters in real time.

Configuration selling point

The customized Weichai engine and Linde hydraulic components from affiliated enterprises within the group form an energy-saving and efficient golden core powertrain. Shantui-specific high-strength chassis consisting of four wheels and one track ensures an extended service life. Integrated buttons for automatic lifting and bucket withdrawing allow for simple and precise operation.

Paramètres
Nom du paramètre DL300-C3
Engine power (kW)/speed (rpm) 228/1900
Operating mass (kg) 29700
Bucket capacity 3.2
Machine external dimensions (mm) 7345x2980x3510
Engine WEICHAI WP12
Track center distance (mm) 2160
Track shoe width (mm) 660/830
Ground contact length (mm) 2945
Ripper type Three-tooth
Ripper penetration depth (mm) 397
Emissions (Indicated as per international standards) EU stageⅢA
