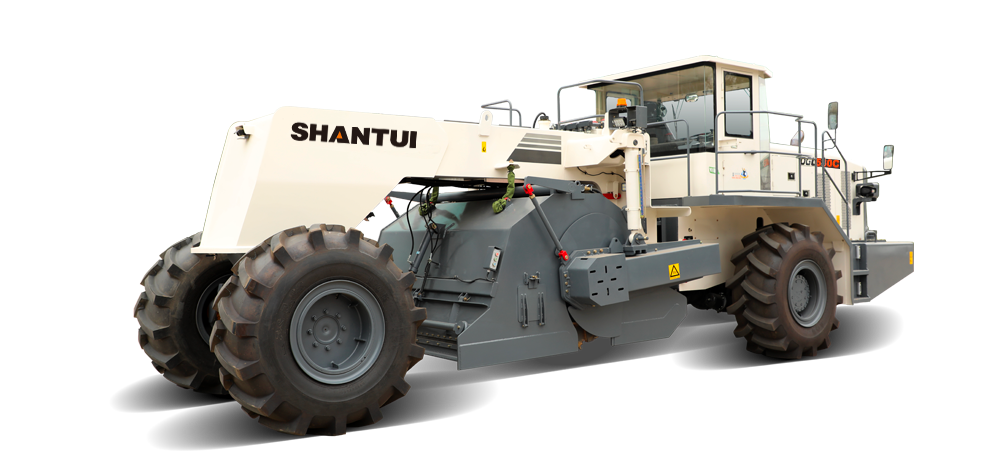

DGL530-C
Machine de recyclage à froid
DGL530-C
  • Puissance du moteur (KW)
    390
  • Largeur de fraisage et de malaxage (mm
    2310
  • Poids opérationnel (Kg)
    22740
  • Caractéristique
  • Paramètres
  • Cas
  • Enquête
Caractéristique
Adaptability to diverse working conditions

The machine is well-suited for in-situ cold recycling of general asphalt pavement and lime-ash base layers, as well as for stabilized soil mixing for base and subbase layers in rural and township roads.

Ease of maintenance and operation comfort

Equipped with a 10-inch LCD screen, the machine offers worry-free operation monitoring. The layout of maintenance points, such as engine filter elements, is reasonable, allowing for easy maintenance by simply opening the engine hood. Fuel refilling is carried out using a ground refueling method;

Configuration selling point

The Weichai WP13 engine customized for the group is optimally matched with the hydraulic system of an industry renowned brand, resulting in robust power, energy efficiency, and reliable and efficient operation. Key milling devices are self-developed and self-manufactured, ensuring their reliable and durable structure;

Paramètres
Nom du paramètre DGL530-C
Puissance du moteur (KW) 390
Largeur de fraisage et de malaxage (mm 2310
Poids opérationnel (Kg) 22740
Dimensions (longueur X largeur X hauteur) mm 9606×3270×3520
Modèle de moteur WP13G530
Profondeur de fraisage et de malaxage (mm) 400
Vitesse de travail (m/min) 0~48
Vitesse de marche (m/min) 0~25
Empattement (mm) 5725
Voie (mm) Front:2250 Rear:2200
Emissions(Marquage conforme à la norme InterChina) Eu stage IIIA
