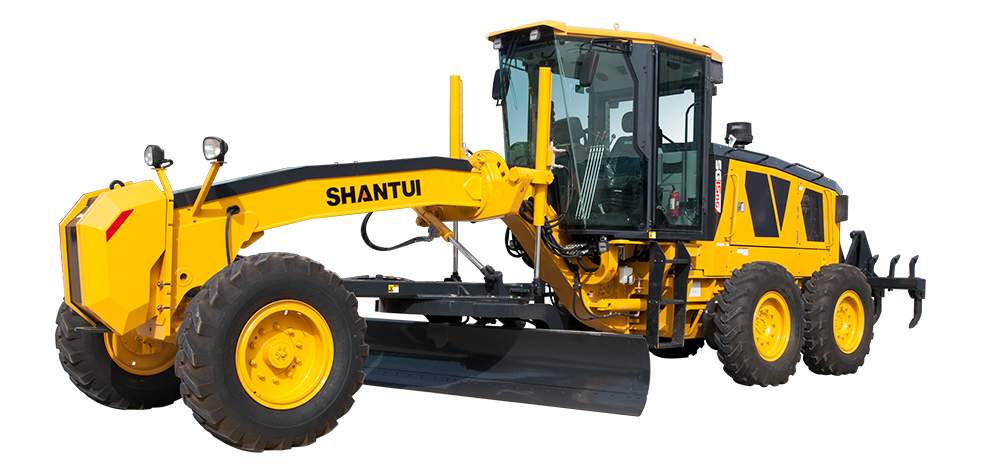

SG15-B6
Niveleuse
SG15-B6
  • Puissance du moteur(kW)
    112
  • Poids global de l’engin(kW)
    13
  • Largeur de la lame(mm)
    3660
  • Caractéristique
  • Paramètres
  • Cas
  • Enquête
Caractéristique
Adaptability to diverse working conditions
The machine offers the flexibility to be fitted with a range of attachments, including the front moldboard and rear ripper, to meet the construction requirements across diverse working conditions, such as leveling, trenching, scraping, and stripping.
Ease of maintenance and operation comfort
The machine is designed with externally accessible lubrication points for ground lubrication and is equipped with a centralized pressure testing system. Every oil filler is designed to be externally accessible. The cab design of this machine eliminates the A-pillar and presents an expansive 320° wide field of vision. It is furnished with a mechanical suspension seat and an electronic control handle, ensuring a more comfortable and convenient operating experience.
Configuration selling point
This machine, featuring its mainstream engine and drive system, delivers the utmost traction available in the industry and remarkable operational efficiency. It comes equipped with a heavy-duty slewing bearing working device and cutting edges specially developed by Shantui, ensuring smooth rotation, superior resistance against wear, and exceptional resilience against impacts.
Paramètres
Nom du paramètre SG15-B6
Puissance du moteur(kW) 112
Poids global de l’engin(kW) 13
Largeur de la lame(mm) 3660
Dimensions 8941x2435x3300
Modèle de moteur 6BTAA5.9-C150
Capacité du réservoir de carburant (L)) 290
Capacité du réservoir d’huile hydraulique(L) 85
Traction maximale(kN) 72
Maximum forward Vitesse(km/h) 42
Maximum reverse Vitesse(km/h) 29.8
Angle de coupe de la lame(°) 22~73
Emissions(Indiquées suivant normes internationales) Eu stage II
